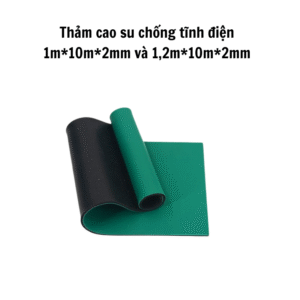

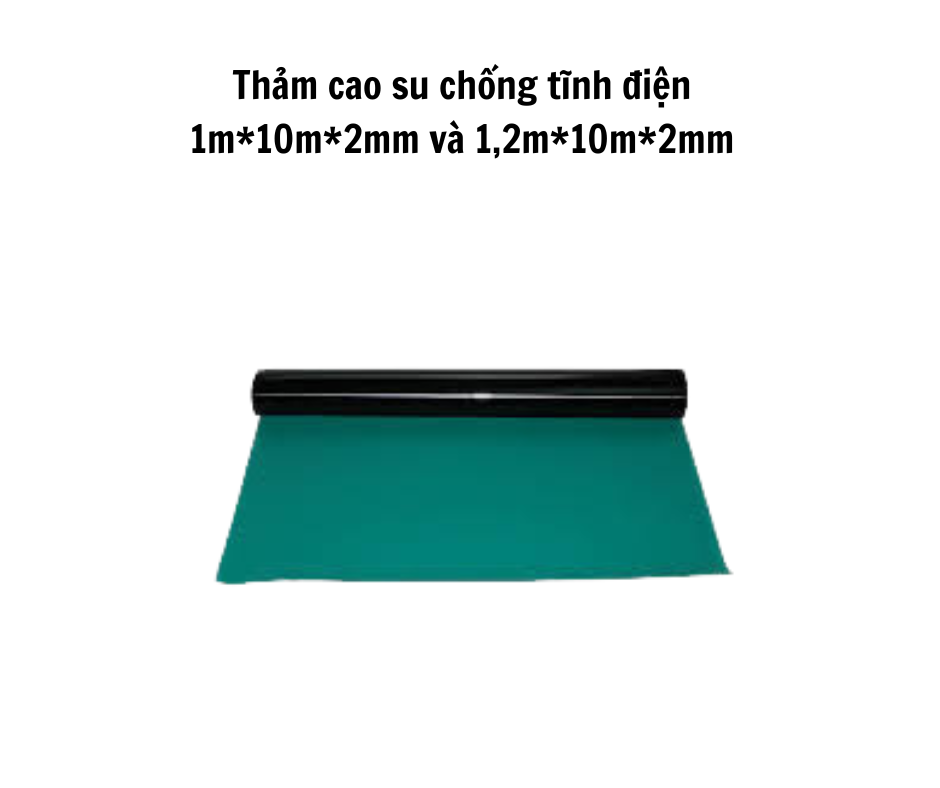

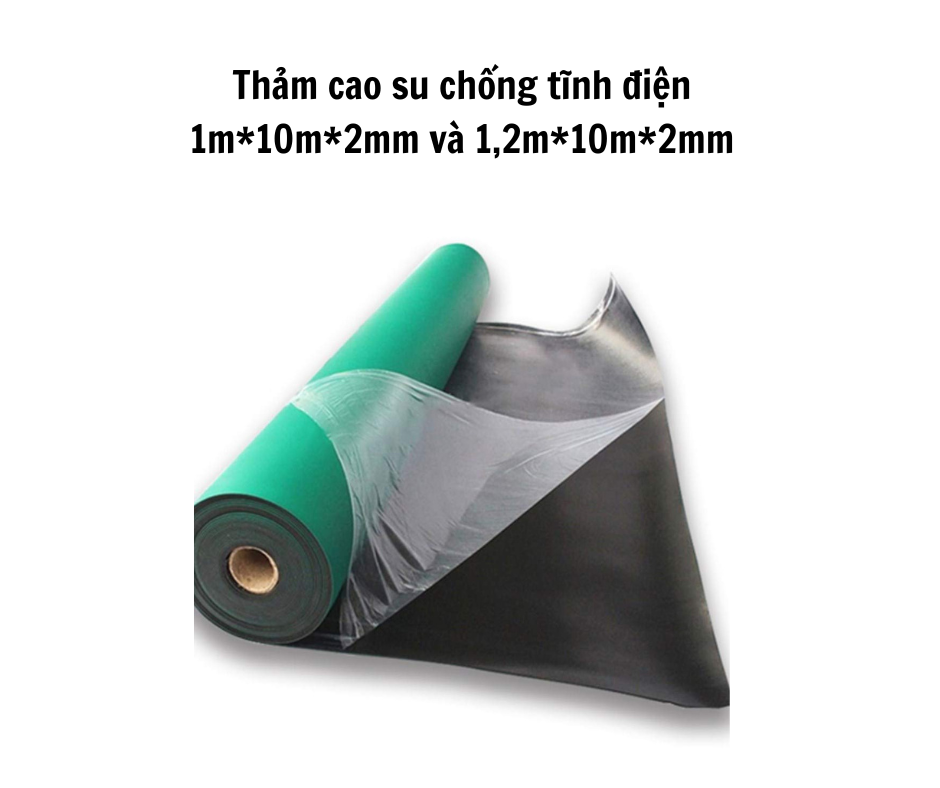

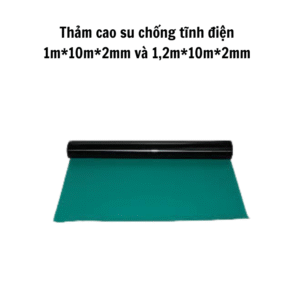

1m and 1.2m Synthetic Rubber ESD-Safe Mat

In electronic component, semiconductor, and circuit board production environments or electrostatic protected areas, the risk of equipment damage due to electrostatic discharge (ESD) is very high. Therefore, the installation of 1m and 1.2m anti-static synthetic rubber mats is an important solution to ensure the safety of equipment, components, and workers. With common sizes 1m và 1,2m, this product is widely trusted and used in industrial factories in Vietnam.

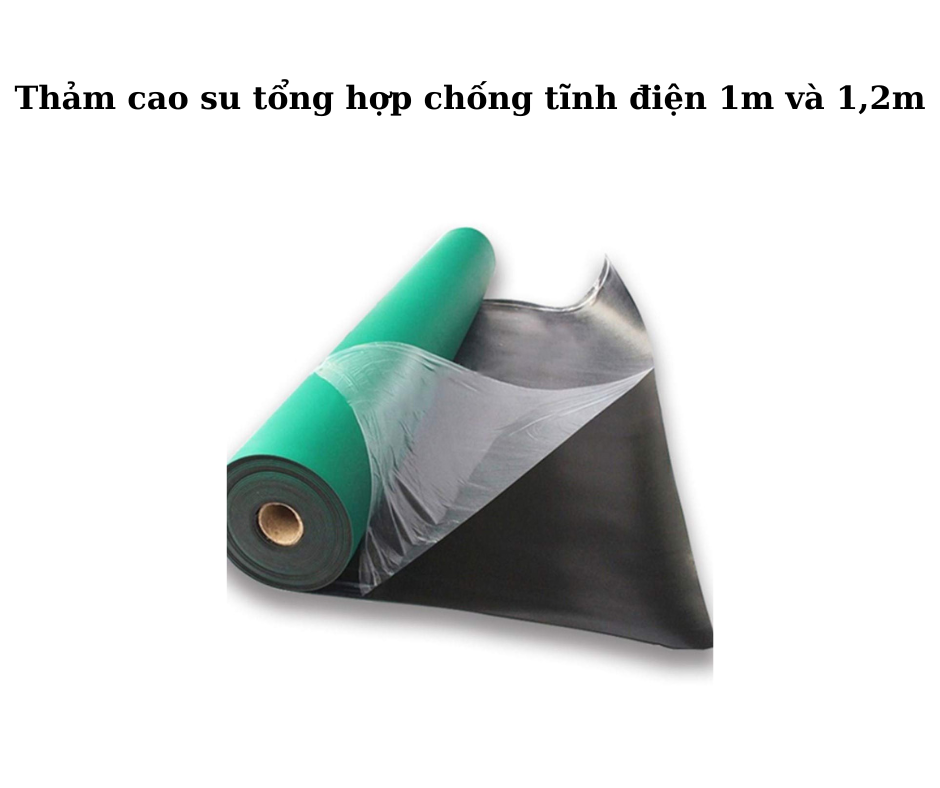

Product Description – Anti-Static Rubber Mat 1m and 1.2m

Full Product Name: ESD Anti-Static Rubber Mat (sizes 1m and 1.2m)
Product Code: Depending on the manufacturer – e.g., ESD-MAT-100, ESD-MAT-120
Main material: Specialized two-layer synthetic rubber: top layer anti-static – bottom layer conductive.
Common Colors: Green, Blue, Gray
Thickness: 2mm ± 0.2mm
Weight: Approximately 2.8 – 3.2 kg per linear meter (depending on thickness and structure)
Surface resistance: 10⁶ – 10⁹ ohm
Conductive Layer Resistance: 10³ – 10⁵ ohm

The product is pre-rolled in 10m lengths or can be cut to customer requirements, making it convenient for installation in production areas or technical inspection rooms.

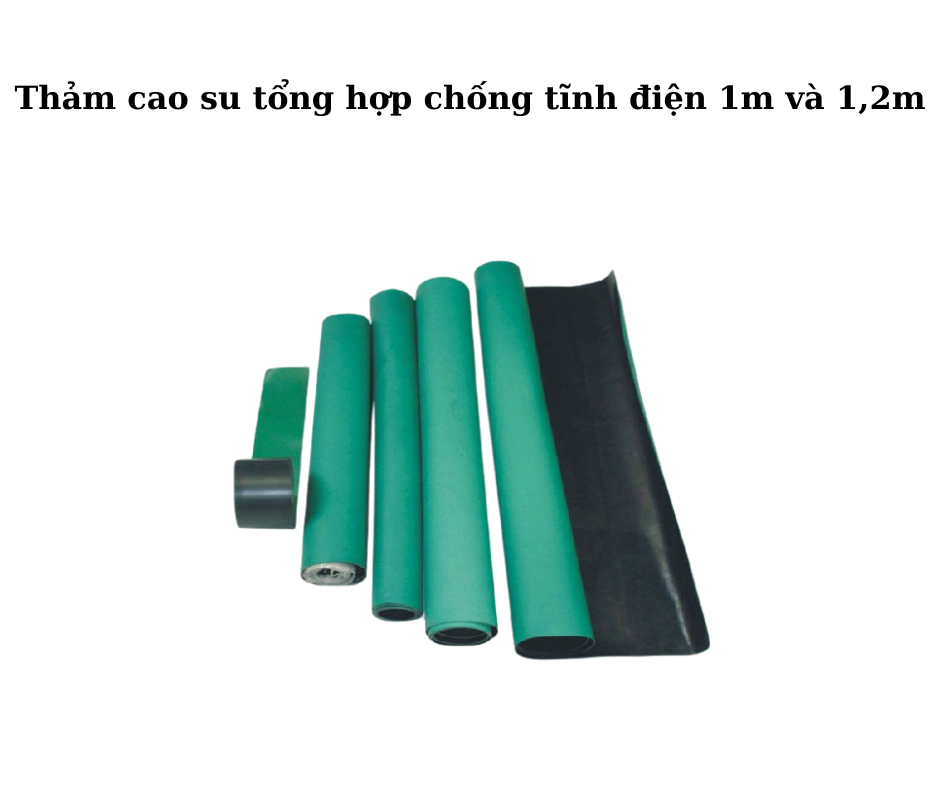

Various Applications of Anti-Static Rubber Mats

With superior anti-static capability, ESD Rubber Mats 1m and 1.2m suitable for installation in various specialized environments:

• Cleanrooms for electronic component, SMT board, and semiconductor production: Protect components from damage caused by static electricity.

• Pharmaceutical, cosmetics, and medical device factories: Helps maintain a clean, safe, and interference-free environment.

• Laboratories, hospitals, research institutes: Prevents electrostatic discharge that could distort research results.

• Electrostatic Protected Area (EPA zones) When combined with grounding wires and anti-static wrist straps, it helps eliminate static charges on both personnel and equipment.

• Used at workstations, assembly tables, and production lines: Ergonomic design, easy to clean, suitable for individual or team use in production.

Benefits of Anti-Static Rubber Mats (1m and 1.2m)

The use of anti-static rubber mats provides many practical and long-term benefits for businesses:

• Increase Production Efficiency: Protects sensitive components from static damage and reduces product defects.

• Ensure workplace safety: Minimizes electrostatic shocks, especially in low-humidity areas.

• Complies with ISO, ESD, GMP standards: Contributes to completing the ESD control system in factories according to international standards.

• Save on maintenance costs: Long lifespan, minimal damage, easy to clean, and reduces the need for frequent replacement.

• Flexible installation: Can be fixed in place or moved depending on the usage location.

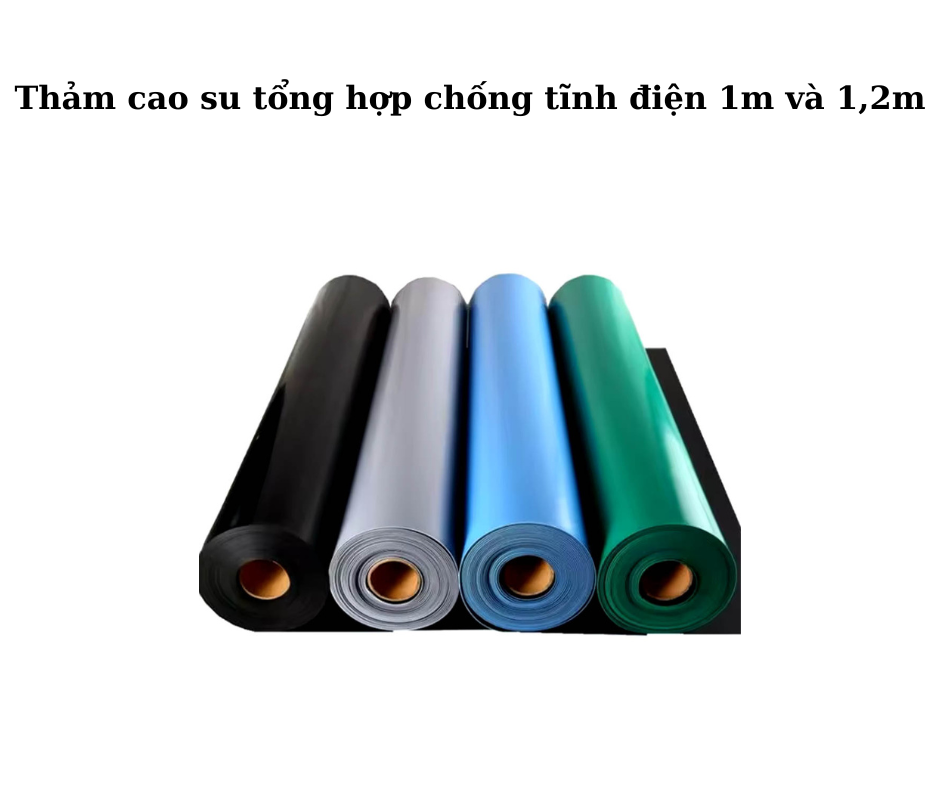

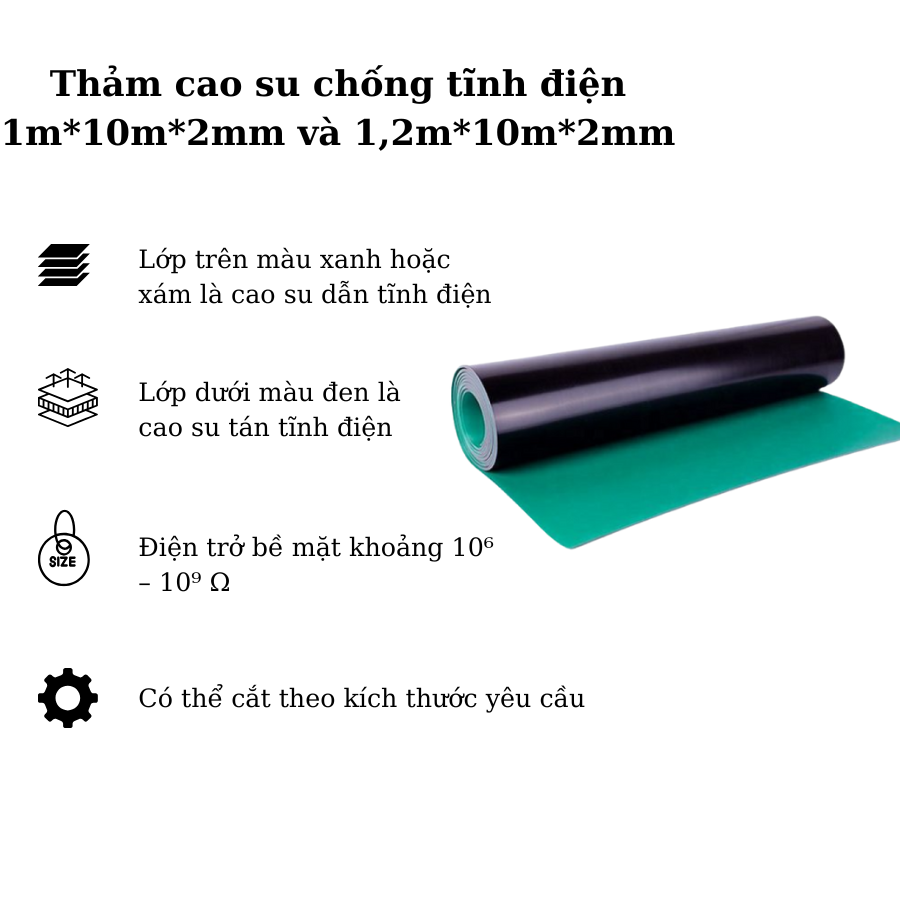

Product structure and design

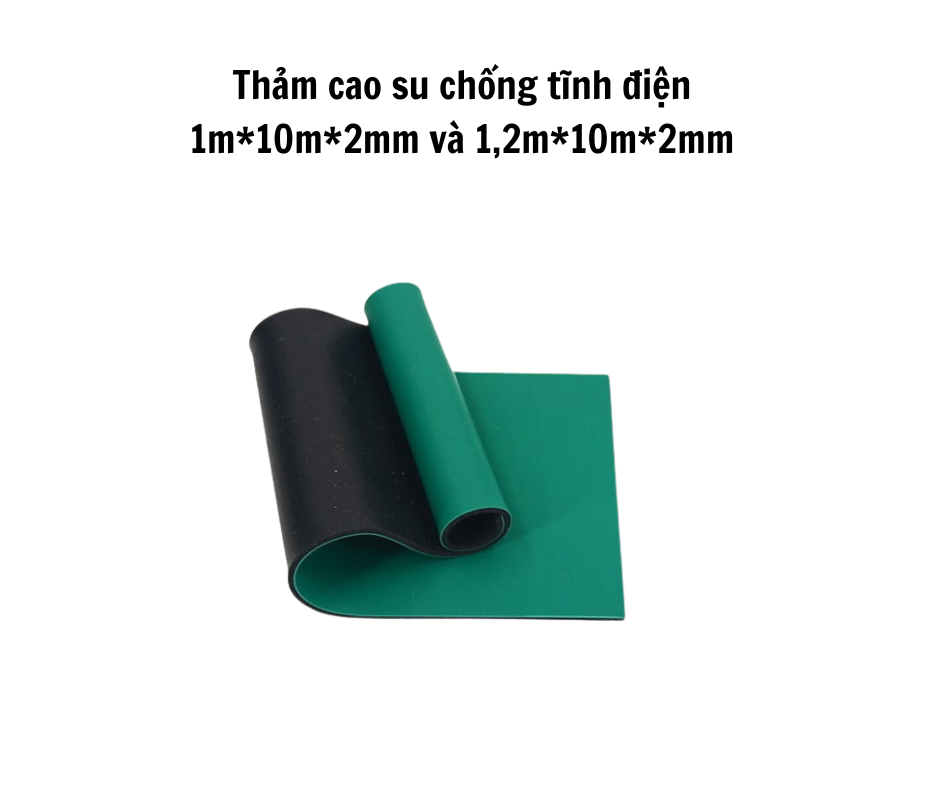

The ESD rubber mat has a distinct two-layer structure, with each layer performing a specific function:

1. Top layer: Green, smooth surface with a surface resistance of 10⁶ – 10⁹ ohms, serving as the anti-static layer to neutralize charges generated during operation.

2. Bottom layer: Black, with lower resistance (10³ – 10⁵ ohms), functioning to conduct charges to the ground through the grounding wire.

Outstanding Design:

• Scratch-resistant surface, easy to clean: Easily cleaned with a clean cloth, alcohol, or specialized solution without affecting the product's performance.

• Rust-resistant, not prone to rapid aging: Does not absorb moisture and does not deteriorate over time like conventional mats.

• Color and size options: In addition to the standard sizes of 1m and 1.2m, custom orders are available in 0.6m, 1.5m, or other lengths as required.

• Suitable for all workbench surfaces: Can be used with anti-slip edging or adhesive for floor fixation.

Instructions for use and precautions

To ensure maximum effectiveness during use Anti-static rubber mat, users should pay attention to the following guidelines:

Installation method:

• Fix the mat onto the workbench surface with adhesive or lay it directly on the floor.

• Connect the grounding cord from the mat to a standard grounding system or ESD grounding bar.

• Can be used in combination with anti-static wrist straps to enhance protection.

Proper operation:

• Avoid dragging sharp or heavy objects across the mat surface to prevent scratches.

• Wear ESD shoes or slippers when working on the mat surface.

Regular Maintenance:

• Wipe with a soft cloth and a specialized cleaning solution to remove dust and grease.

• Do not use strong chemicals (acid, alkali) that may damage the mat surface.

Warnings and Precautions:

• Avoid exposure to temperatures above 80°C or placing near direct heat sources.

• Do not use in prolonged humid environments without proper insulation.

• Do not misuse as an insulating mat for high voltage.

Place to buy – reputable and high-quality address

If you are looking for an anti-static rubber mat that meets strict standards in industrial production environments, cleanrooms, or electrostatic protected areas (EPA) – then Goma Food Machinery is the reliable choice.

We are committed to providing our customers with Comprehensive solution with genuine products, in-depth technical consulting, clear warranty, and the most competitive pricing in the market.

In addition, to serve customers in Northern Vietnam, customers can directly contact official authorized distribution partner:

AN BINH VINA TRADING & SERVICE CO., LTD

📍 AddressKha Ly Thuong Residential Group, Quang Minh Ward, Viet Yen Town, Bac Giang Province
📞 Hotline: 0866 732 555 (7:30 AM – 10:00 PM)
📧 Email: Email: anbinhvinaKL@gmail.com
